STANDARD PARTS
» Thermoregulation System for Extruder Feeding Zone
» Internal Bubble Cooling System (IBC)
» Heat Exchanger
» Bubble Guide
» Secondary Nip
» Edge Guide
» Technical Service Support with Remote Connection

OPTIONAL PARTS
» Corona Teater
» 4 Component Dosing Unit
» 6 Component Dosing Unit
» Air Ring With Tickness Control
» Hot Slitting Unit
Brochure

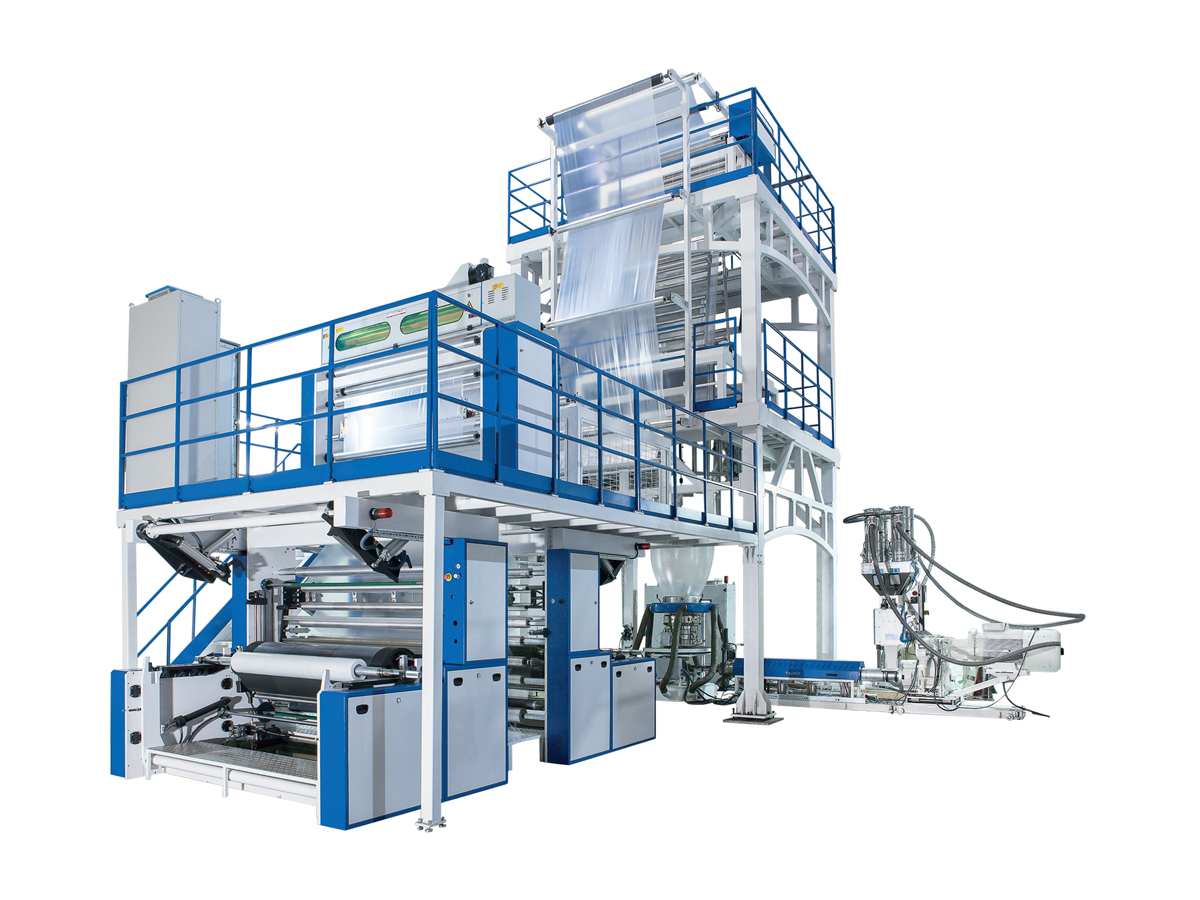

MODELS	TAUREX COEX 1500	TAUREX COEX 1700	TAUREX COEX 1900	TAUREX COEX 2100	TAUREX COEX 2600	TAUREX COEX 3100
Max. Film Width	1300mm	1500mm	1700mm	1900mm	2400mm	2900mm
Thickness of the Film	25-100 micron	25-100 micron	25-100 micron	25-100mm	25-100mm	25-100mm
Max. Output Capacity	300kg/h	350 kg/h	400kg/h	450 kg/h	500kg/h	600kg/h
EXTRUSION UNIT
Main Motor	A: 45kW B: 90kW C:45kW	A: 55kW B: 90kW C:55kW	A: 55kW B: 110kW C:55kW	A:55kW B:90kW C:55kW	A: 55kW B: 90kW C: 55kW	A:75kW B:132kW C:75kW
Screw Diameter	A: Ø 55 B: Ø 75 C: Ø 55	A: Ø 65 B: Ø 90 C: Ø 65	A: Ø 65 B: Ø 90 C: Ø 65	A: Ø 65 B: Ø 90 C: Ø 65	A: Ø 65 B:Ø 90 C: Ø 65	A: Ø 75 B: Ø 100 C: Ø 75
Screw & Barrel Material	8550 Steel Bimetallic	8550 Steel Bimetallic	8550 Steel Bimetallic	8550 Steel Bimetallic	8550 Steel Bimetallic	8550 Steel Bimetallic
Screw Ratio L/D	32:1	32:1	32:1	32:1	32:1	32:1
Barrel Air Cooling Fans	A ve C:4 X 0,18kW B:4 X 0,25kW	A ve C:4 X 0,18kW B:5 X 0,25Kw	A ve C:4 X 0,18kW B:5 X 0,25kW	A ve C::4 X 0,18kW B:5 X 0,25kW	A ve C:4 X 0,18kW B:5 X 0,25kW	A ve C:4 X 0,25kW B:6X0,25KW
Type of Screen Changer	Hydraulic Filter	Hydraulic Filter	Hydraulic Filter	Hydraulic Filter	Hydraulic Filter	Hydraulic Filter
DIE UNIT
Type of The Die Head	Fixed Die	Fixed Die	Fixed Die	Fixed Die	Fixed Die	Fixed Die
Die Diameter	Ø250mm	Ø300mm	Ø350mm	Ø350mm	Ø450mm	Ø500mm
Air Blower Fan	15kW	22kW	22kW	22kW	22kW	30kW
HAUL-OFF UNIT
Type of The Tower	Rotary Tower	Rotary Tower	Rotary Tower	Rotary Tower	Rotary Tower	Rotary Tower
Haul-Off Roller Dia. & Width	Ø240mm-1500mm	Ø240mm-1700mm	Ø240mm-1900mm	Ø240mm-2100mm	Ø240mm-2600mm	Ø240mm-3100mm
Haul-Off Motor	2.2kW	3kW	3kW	3kW	3kW	4kW
Height of The Machine	12.5 m	12.5 m	12.5 m	12.5 m	15.5m	15.5m
WINDER UNIT
Type of Winder	Automatic Winder	Automatic Winder	Automatic Winder	Automatic Winder	Automatic Winder	Automatic Winder
Winder Roller Dia. & Width	Ø477mm-1500mm	Ø477mm-1700mm	Ø477mm-1900mm	Ø477mm-2100mm	Ø477mm-2600mm	Ø477mm-3100mm
Winder Roller Motor	2.2kW	3kW	3kW	3kW	3kW	4kW
Max. Roll Diameter	600mm	600mm	600mm	600mm	600mm	600mm
